Joyce RC-18, RC-38, RC-99, and RC-204 miter gearboxes are specifically engineered for use with Joyce jacks and actuators in multiple jack systems. These heavy-duty miter gearboxes are rated for 2154 through 29,035 inch-pounds torque @ 100 RPM. They feature ductile or grey iron housings, and steel input and pinion shafts. Standard miter boxes are 1:1 and 2:1 ratios, but other ratios are available.

Ordering Information:

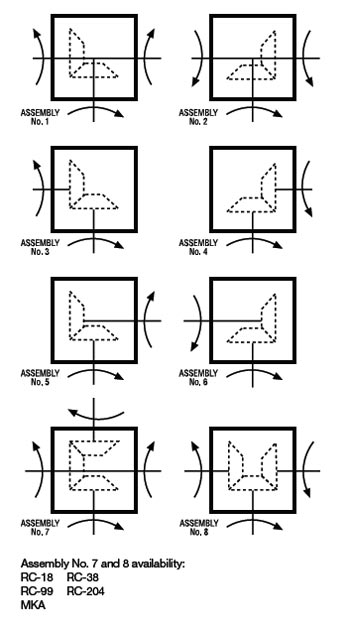

Miter gearboxes are important components in jack and actuator systems and it is important to select the best option based on torque requirements and rotational configuration. Refer to the list of part numbers for each miter box size.

Product Media

jack
  • Ductile Iron Housing (RC-18, RC-99, RC-204)
  • Grey Iron (RC-38)
  • Aluminum caps (RC-18, RC-99)
  • Grey iron caps and aluminum caps (RC-38)
  • Grey iron caps (RC-204)
  • Spiral bevel gears
  • Steel input shafts with keyways

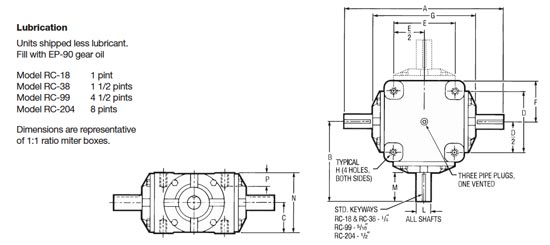

Model No. Ratio Max. Torque Rating* (In LBs.) Max. HP @400 RPM Max. RPM A B C D E F G H L M N P Approx. Wt. (Lbs.)
RC-18 1:1 2154 10.78 3000 11 5 1/2 2 1/16 4 1/4 4 1/4 2 3/4 7 3/8-16 .9950 .9980 2 4 1/8 11/16 26
RC-18 2:1 569 3.24 5000 11 7 3/8 2 1/16 4 1/4 4 1/4 2 3/4 7 3/8-16 .9950 .9980 2 4 1/8 11/16 26
RC-38 1:1 4776 23.08 2200 13 6 1/2 2 13/16 4 1/2 4 1/2 2 7/8 8 1/2-13 1.2495 1.2480 2 1/2 5 5/8 7/8 39
RC-38 2:1 1211 6.85 4400 13 8 3/8 2 13/16 4 1/2 4 1/2 2 7/8 8 1/2-13 1.2495 1.2480 2 1/2 5 5/8 7/8 39
RC-99 1:1 13300 69.78 1600 16 1/2 8 1/4 3 3/4 6 6 4 1/8 10 5/8 1/2-13 1.3745 1.3730 2 15/16 7 1/2 1 3/8 72
RC-99 2:1 3446 19.24 3100 16 1/2 11 11/16 3 3/4 6 6 4 1/8 10 5/8 1/2-13 1.3745 1.3730 2 15/16 7 1/2 1 3/8 72
RC-204 1:1 29035 155.76 1200 19 9 1/2 4 3/4 8 8 4 15/16 13 5/8-11 1.9995 1.9980 3 9 1/2 1 1/4 172

RC-204 2:1 8156 45.05 2300 19 9 1/2 4 3/4 8 8 4 15/16 13 5/8-11 1.9995 1.9980 3 9 1/2 1 1/4 172
