Servo Motor Mounts

Servo Motor Mounts

Joyce offers servo motor mounts for 2, 2-1/2, 3, 5, and 10-ton worm gear screw jacks and electric cylinders. Easily attach the motor of your choice to either side of your jack. These mounts are compatible with various servo motors but Joyce can provide servo motor mounts to meet your exact specifications.

Contact Joyce today and allow us to provide motor mounts that meet your servo motor specifications.

Product Media

jack

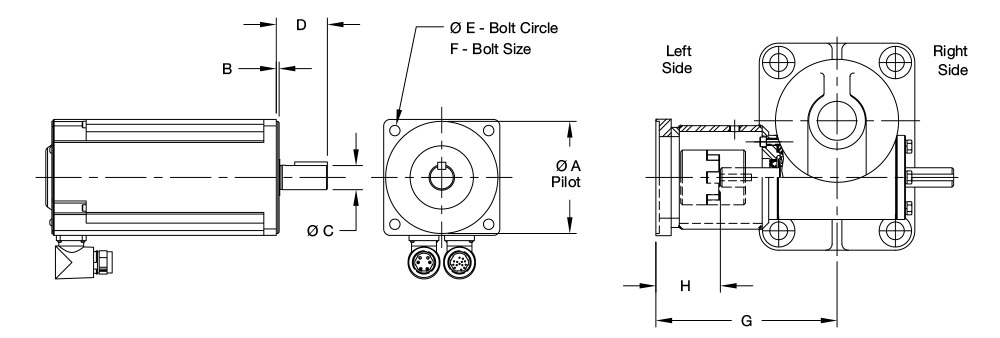

Motor Frame Dimensions (mm)
Shaft Code A B C D E F
SM01 80.0 2.74 16.0 40.0 100.0 M6x1.00
SM02 95.0 2.74 19.0 40.0 115.0 M8x1.25
SM03 110.0 2.74 24.0 50.0 130.0 M8x1.25
SM04 110.0 2.74 24.0 50.0 130.0 M8x1.25
SM05 130.0 3.12 28.0 60.0 165.0 M10x1.50
SM06 130.0 3.12 28.0 60.0 165.0 M10x1.50
Jack Dimensions (mm)
Jack Model Shaft Code G H Max. Coupling Torque N-m
2 Ton Reverse Base, 2-1/2, & 3 Ton SM01 137.0 52.8 15.2
SM02 142.0 53.0 24.4
SM03 152.0 63.0 32.8
SM04 157.0 68.0 60.0
SM05 161.8 72.9 32.8
SM06 167.8 78.9 60.0
5 Ton SM01 162.7 52.6 15.2
SM02 167.6 53.3 24.4
SM03 177.8 63.4 32.8
SM04 182.8 68.5 60.0
SM05 187.5 73.2 32.8
SM06 193.4 79.1 160.0
10 Ton SM02 193.4 53.7 24.4
SM04 207.8 68.1 60.0
SM05 213.2 73.5 32.8
SM06 219.2 79.5 160.0
