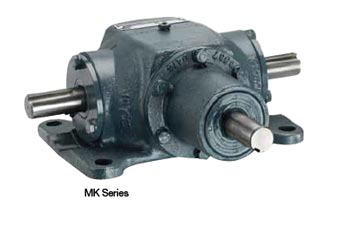

MKA Miter Gear Boxes

Joyce MKA miter gear boxes are specifically engineered for use with Joyce jacks and actuators in multiple jack systems. These heavy-duty miter gearboxes are rated for 3,000 inch-pounds torque @ 100 RPM. They feature ductile housings, and steel input and pinion shafts. Standard miter boxes are 1:1 ratio, but other ratios are available. MKA gear box housings feature flanged base mounts which differ from the RC series gear boxes.

Ordering Information:

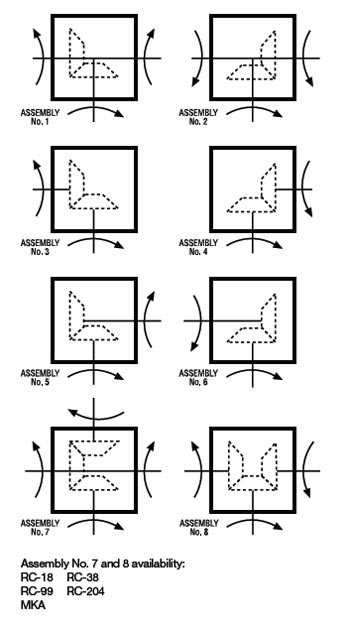

Miter gear boxes are important components in jack and actuator systems and it is important to select the best option based on torque requirements and rotational configuration. Contact with your questions and allow us to help you specify the compatible components for a complete system. Otherwise refer to the list of part numbers for each miter box size.

Request a Quote

  • Ductile Iron Housing
  • Spiral bevel gears
  • Steel input shafts with keyways

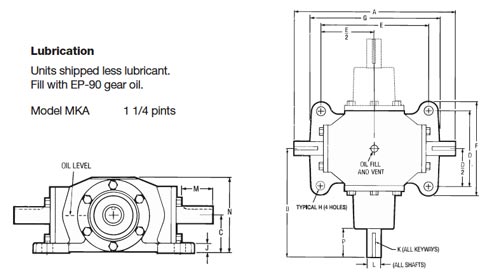

Model No.Max. Torque Rating* (In LBs.)ABCDEFGHJKLMNPApprox. Wt. (Lbs.)
MKA 3,000 12 8 2 1/4 5 1/2 8 6 7/8 9 9/16 11/16 1/2 1/4 x 1/8 x 1 1/2 1.0005 0.9995 .1 31/32 4 9/16 2 1/8 33

Files must be less than 2 MB.
Allowed file types: gif jpg png tif pdf dwg jpeg jax.
Files must be less than 2 MB.
Allowed file types: gif jpg png tif pdf dwg jpeg jax.

Request a quote for products and repair parts:

  • New Product Quote: Visit the product sections on this website and select or construct a part number and quantity of the product you wish to purchase.
  • Reorder a Product: Include the previous PO or serial number along with the quantity you need.
  • Repair Parts: View the product manual or exploded view to identify the components that are needed. Locate the product serial number and include it in your correspondence with Customer Service.

If you need us to repair your product, request a Returned Goods Authorization (RGA) number by email, phone, or simply fill out the form above and mention "RGA" in message box.
