Eliminator SD ™



Eliminator SD ™

Key Features:

  • Rugged steel construction with durable anti-rotation feature
  • Extreme thrust capacity up to 100,000 lbf
  • Velocity up to 12 in/sec, Strokes up to 48 inches
  • Combines with your servomotor to achieve the perfect high precision/high load capacity

2D/3D Drawings

Login to access the 2D/3D Drawings

Charts

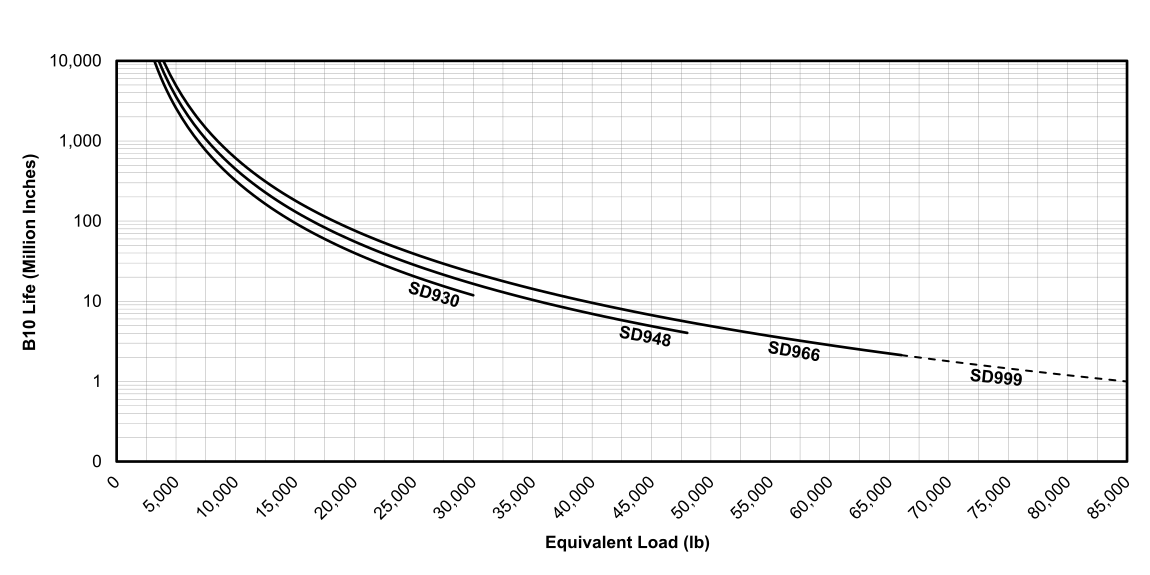

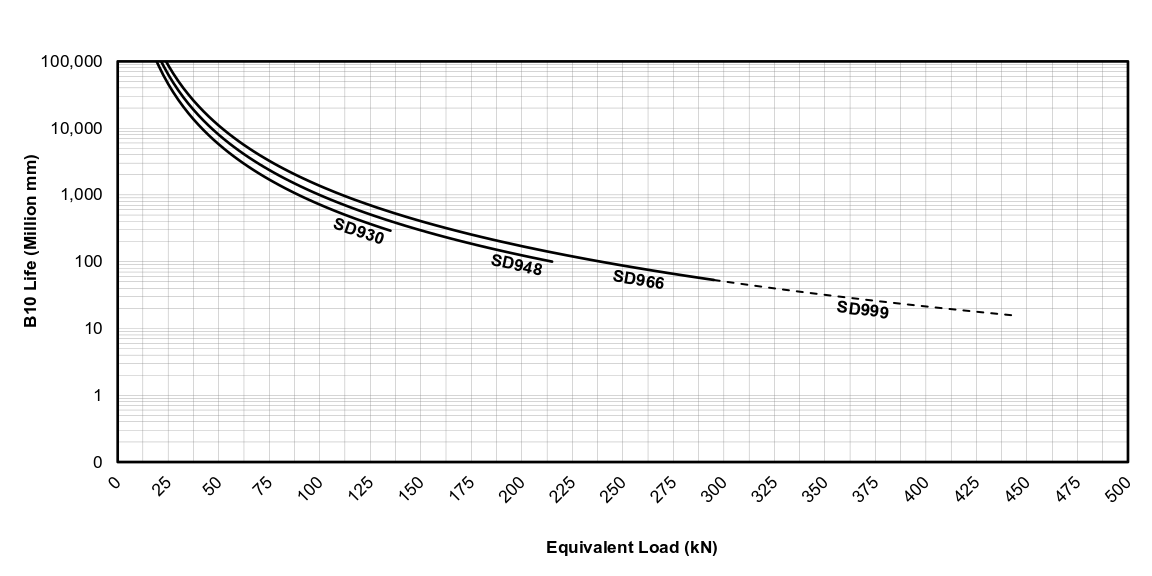

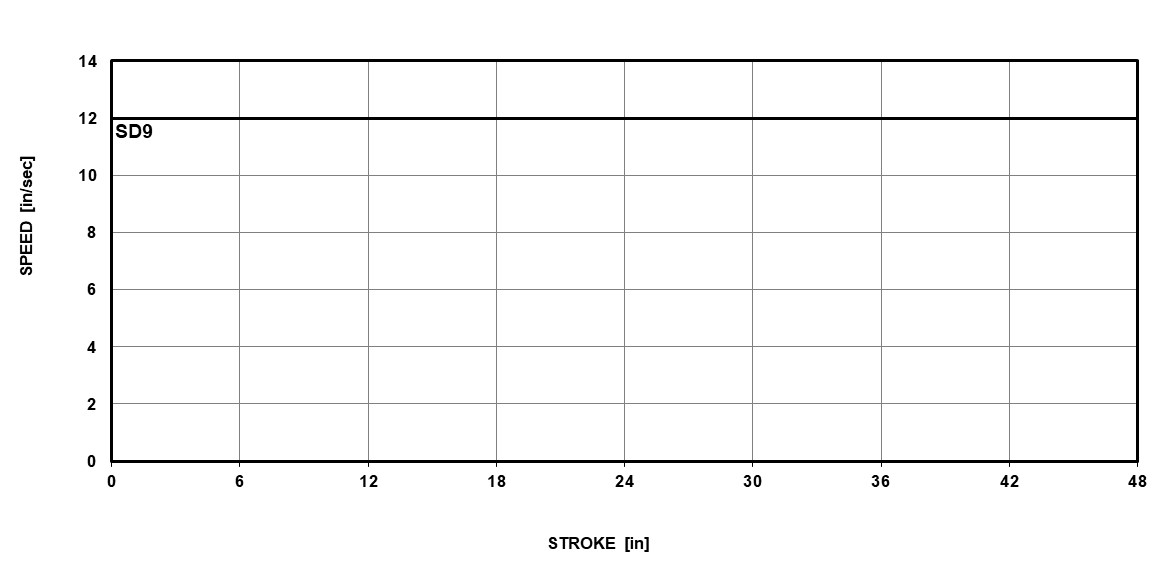

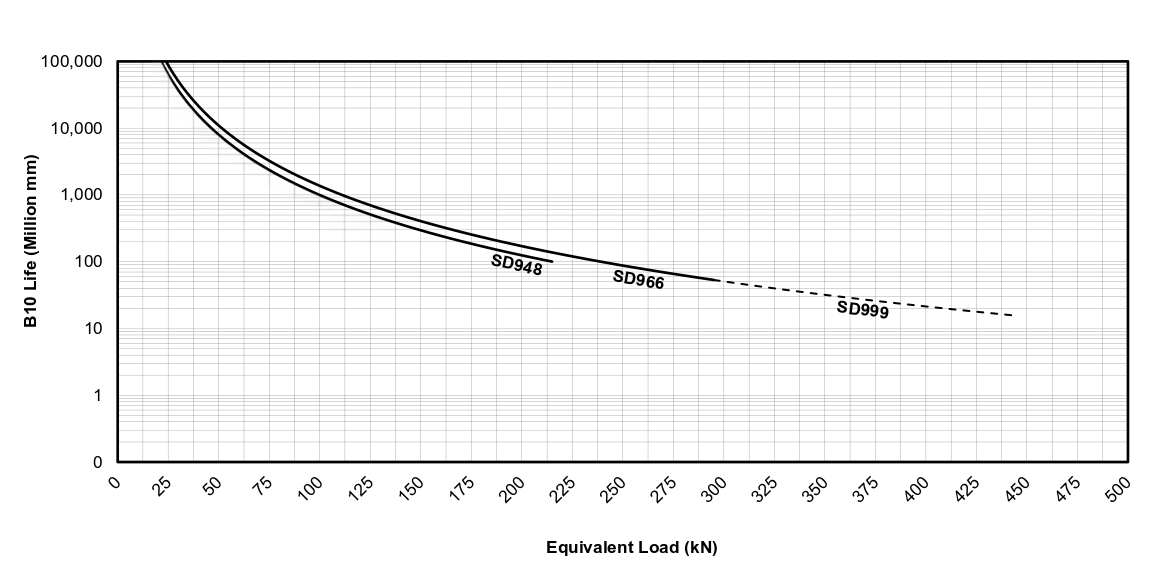

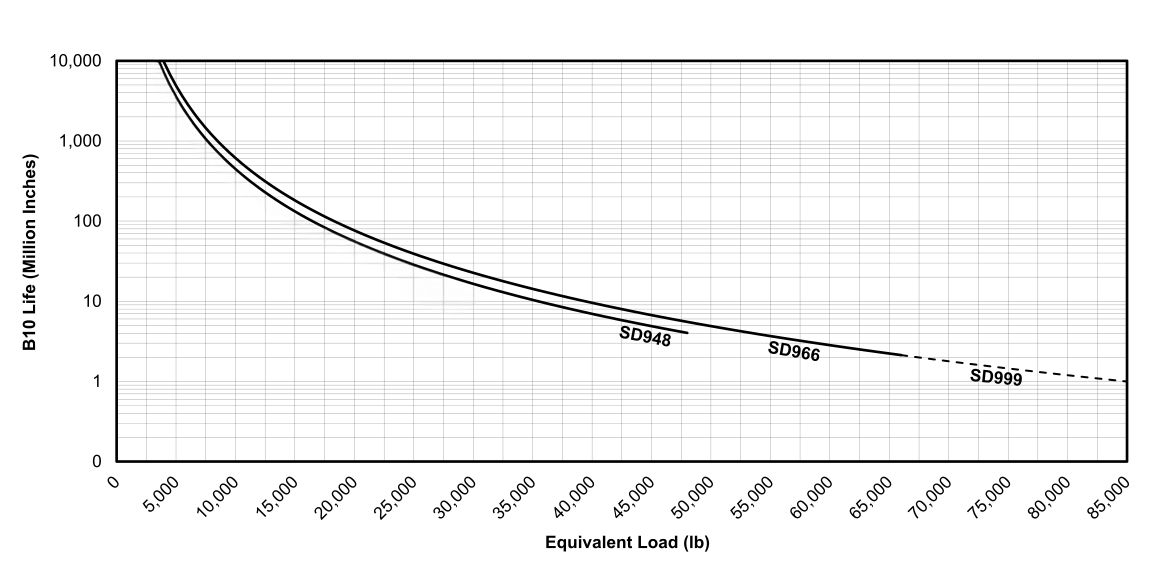

LIFE VS LOAD ENGLISH LIFE VS LOAD METRIC SPEED VS STROKE

Product Media

2D/3D DRAWINGS PRODUCT INFORMATION DIMENSIONED DRAWINGS ORDERING GUIDE APPLICATION WORKSHEET
jack

Available Products

Eliminator SD ™ 100,000 lbs max Eliminator HD ™ 25,000 lbs max Eliminator HDL with Integrated Load Cell ™ 25,000 lbs max Eliminator SP ™ 25,000 lbs max Eliminator SPL with Integrated Load Cell ™ 25,000 lbs max Eliminator SS ™ 2,000 lbs max Tac VT ™ 2,000 lbs max Tac VP ™ 2,000 lbs max Tac LS ™ 2,000 lbs max Universal Actuator UA ™ 500 lbs max

Extreme Thrust Capability in Eliminator HD Platform

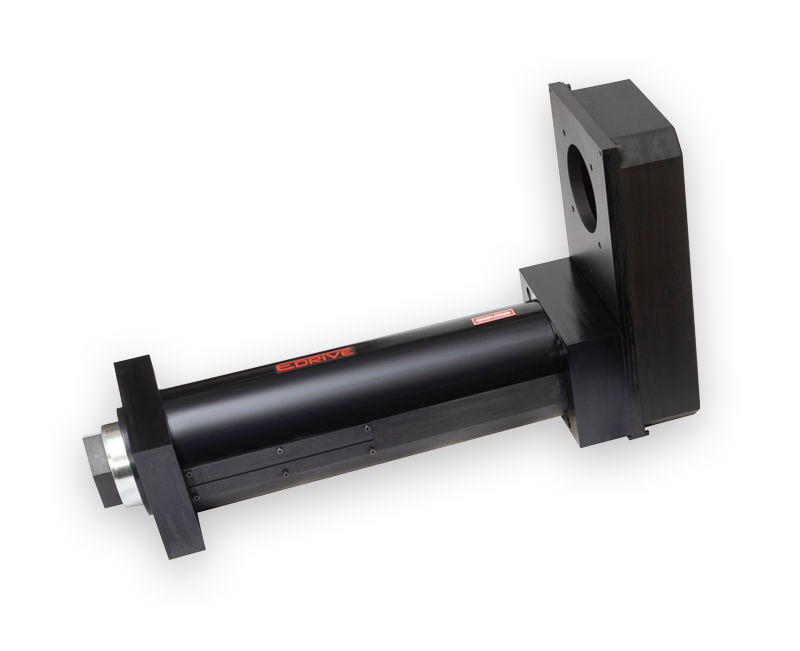

The Eliminator SD super duty linear actuator provides extreme thrust capacity for your high thrust industrial applications. Achieve the perfect high precision/high load capacity solution when you combine your servomotor with this heavy-duty steel actuator.

English

Models Rated Thrust Max. Velocity1 Max. Stroke2 Frame Size Screw Lead Max. Screw Speed1 Max. Torque At Screw Dynamic Capacity Per Million Revs Dynamic Capacity Per Million Inches Max. Motor Or Gearhead Frame Supported2 Inertia 1:1 Zero Stroke3 Inertia 1:1 Per Inch Of Stroke3 Inertia 2:1 Zero Stroke3 Inertia 2:1 Per Inch Of Stroke3 Inertia Inline Zero Stroke3 Inertia Inline Per Inch Of Stroke3 Weight U Mount Zero Stroke4 Weight L Mount Zero Stroke4 Weight Per Inch Of Stroke4
Units lbf in/s in in in RPM in-lbf lbf lbf in lb-in² lb-in² lb-in² lb-in² lb-in² lb-in² lb lb lb
SD930 30,000 12.0 48 9.00 1.000  720 5,305 68,450 68,450 12.00 1,016.05 4.6912 189.31 1.1728 208.35 4.6912 589 608 12.07
SD948 48,000 12.0 48 9.00 1.000  720 8,488 76,390 76,390 12.00 1,097.17 4.6912 216.01 1.1728 208.35 4.6912 595 614 12.07
SD966 66,000 12.0 48 9.00 1.000  720 11,671 84,900 84,900 12.00 1,282.69 4.6912 278.87 1.1728 332.04 4.6912 609 628 12.07
SD999 100,000 12.0 48 9.00 1.000  720 17,684 84,900 84,900 12.00 1,561.55 4.8072 331.27 1.2018 CALL CALL 0 CALL 0.00

Metric

Models Rated Thrust Max. Velocity1 Max. Stroke2 Frame Size Screw Lead Max. Screw Speed1 Max. Torque At Screw Dynamic Capacity Per Million Revs Dynamic Capacity Per Million Inches Max. Motor Or Gearhead Frame Supported2 Inertia 1:1 Zero Stroke3 Inertia 1:1 Per Inch Of Stroke3 Inertia 2:1 Zero Stroke3 Inertia 2:1 Per Inch Of Stroke3 Inertia Inline Zero Stroke3 Inertia Inline Per Inch Of Stroke3 Weight "U" Mount Zero Stroke4 Weight "L" Mount Zero Stroke4 Weight Per Inch Of Stroke4
Units kN mm/s mm mm in RPM Nm kN kN mm kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg kg kg
SD930 133.45 305 1,219 228.6 1.000  720 599.4 304.48 304.48 305 297,338.42 1,372.8256 55,398.45 343.2064 60,971.44 1,372.8256 267 276 5.48
SD948 213.51 305 1,219 228.6 1.000  720 959.0 339.80 339.80 305 321,075.48 1,372.8256 63,212.97 343.2064 60,971.44 1,372.8256 270 278 5.48
SD966 293.58 305 1,219 228.6 1.000  720 1,318.7 377.65 377.65 305 375,368.26 1,372.8256 81,607.42 343.2064 97,168.63 1,372.8256 276 285 5.48
SD999 444.82 305 1,219 228.6 1.000  720 1,998.0 0.00 0.00 305 456,972.74 1,406.7795 96,941.84 351.6949 0.00 0.0000 0 0 0.00
