Eliminator SP ™



Eliminator SP ™

Key Features:

  • IP69K-Rated for High-Pressure/High-Temperature Washdown
  • Contoured 316 Stainless Steel Construction with hard chrome plated piston rod
  • Durable anti-rotation feature
  • Rated thrust up to 25,000 lbf
  • Velocity to 20 in/sec, stroke up to 48 inches
  • 0.002 in/ft standard lead accuracy, with 0.0005 in/ft option

2D/3D Drawings

Login to access the 2D/3D Drawings

Charts

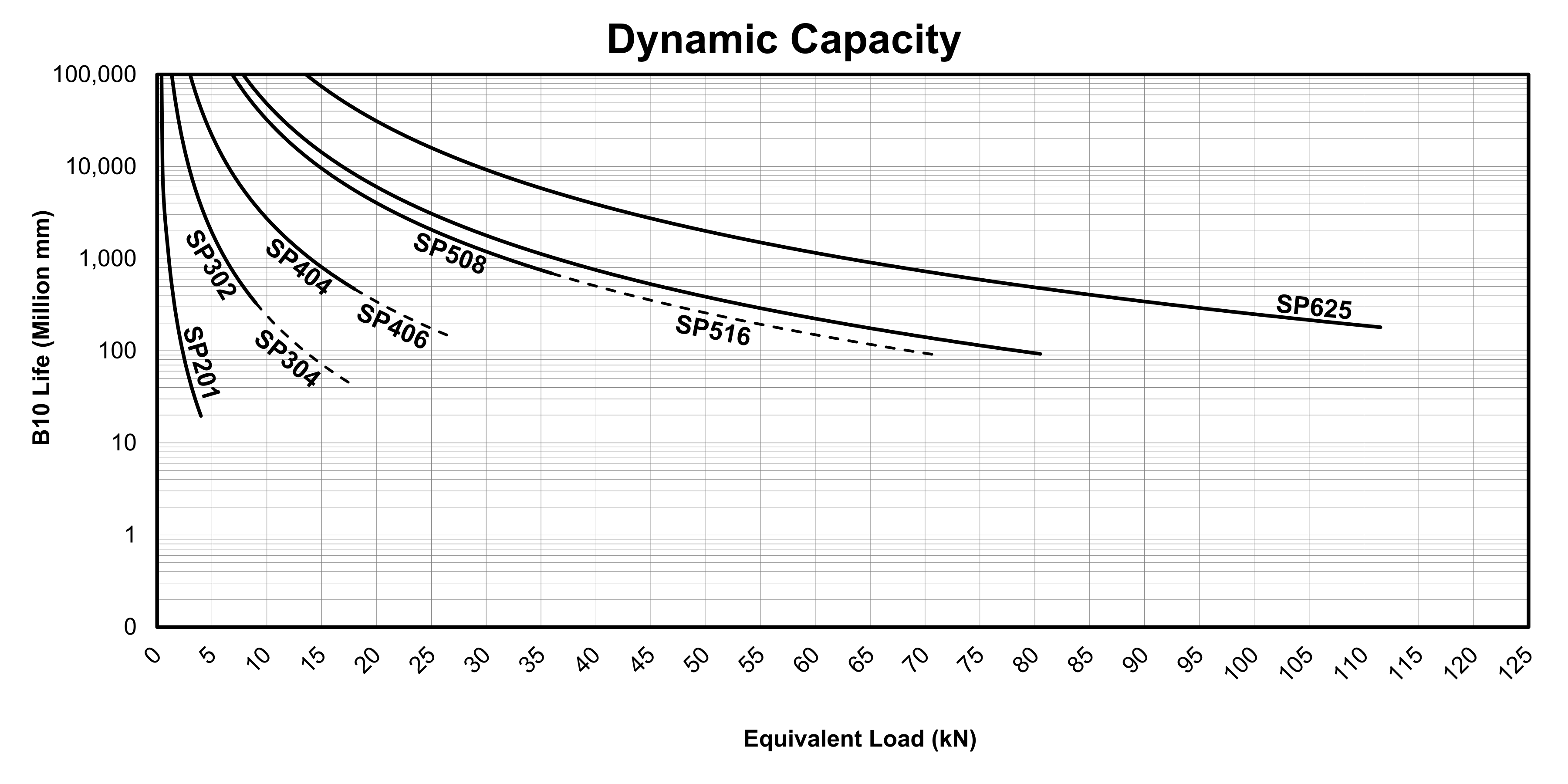

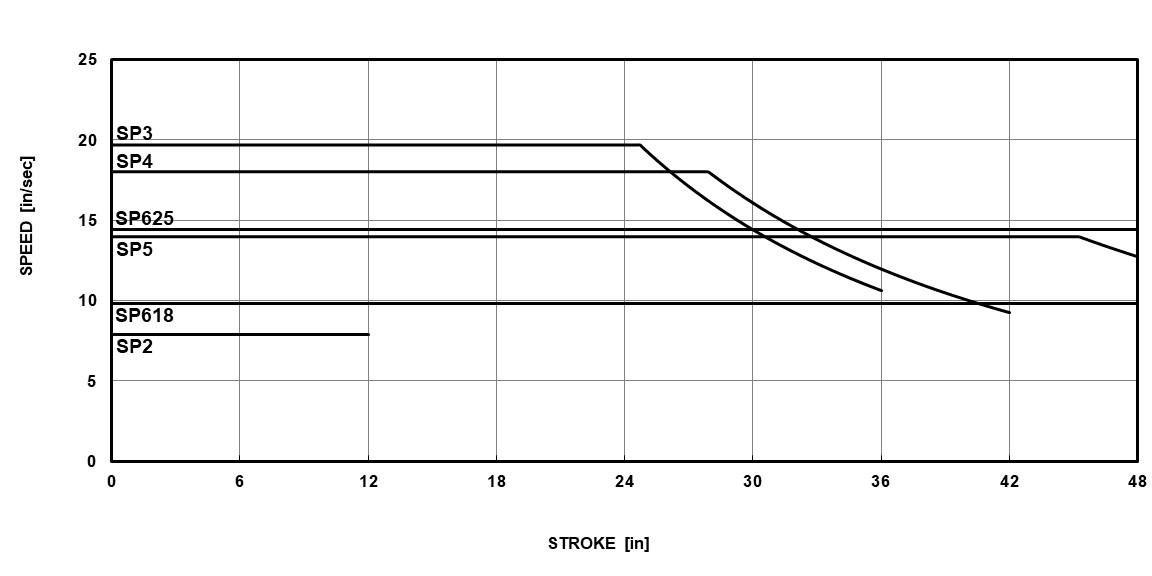

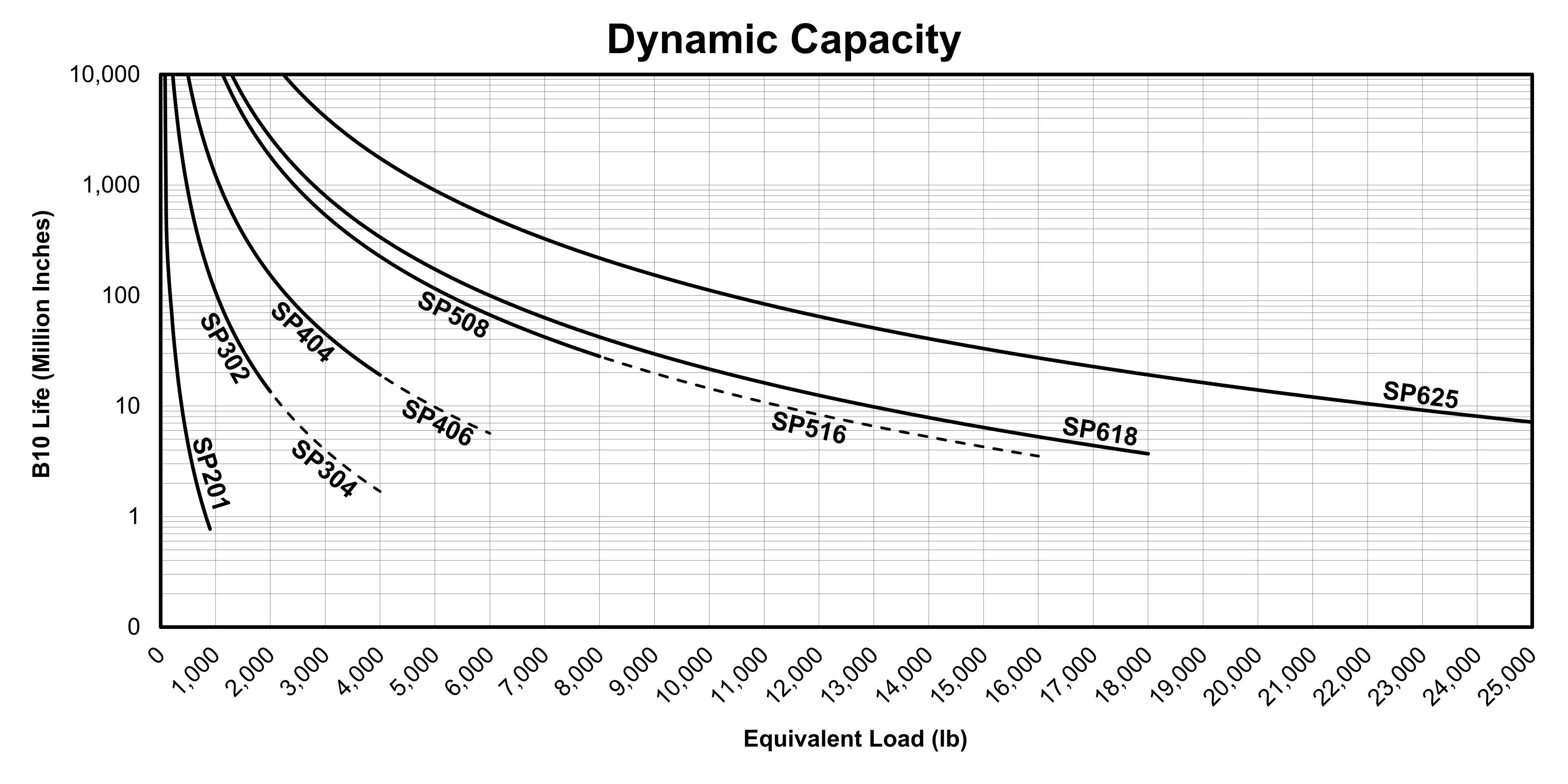

LIFE VS LOAD ENGLISH LIFE VS LOAD METRIC SPEED VS STROKE

Product Media

2D/3D DRAWINGSPRODUCT INFORMATION DIMENSIONED DRAWINGS ORDERING GUIDE APPLICATION WORKSHEET
jack

Available Products

Eliminator SD ™ 100,000 lbs max Eliminator HD ™ 25,000 lbs max Eliminator HDL with Integrated Load Cell ™ 25,000 lbs max Eliminator SP ™ 25,000 lbs max Eliminator SPL with Integrated Load Cell ™ 25,000 lbs max Eliminator SS ™ 2,000 lbs max Tac VT ™ 2,000 lbs max Tac VP ™ 2,000 lbs max Tac LS ™ 2,000 lbs max Universal Actuator UA ™ 500 lbs max

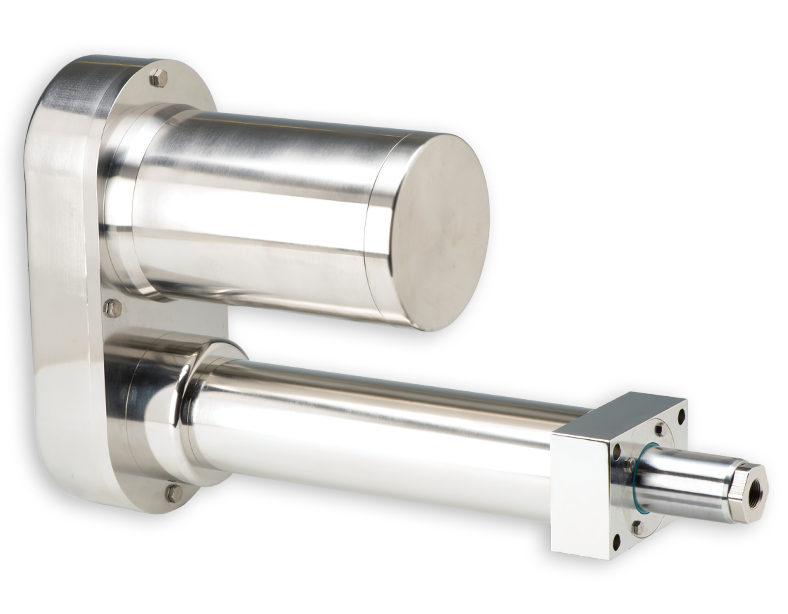

Eliminator SP

IP69K Rated, Heavy-Duty Stainless Steel Actuator

The Eliminator SP offers all the performance advantages of our HD actuator, now with IP69K rating*. Ideal for food and medical grade applications. This 316 Stainless Steel actuator is designed for high-pressure and high-temperature washdown conditions.

Login to access the 2D/3D Drawings

English

Models Rated Thrust Max. Velocity1 Max. Stroke2 Frame Size Screw Lead Max. Screw Speed1 Max. Torque At Screw Dynamic Capacity Per Million Revs Dynamic Capacity Per Million Inches Max. Motor Or Gearhead Frame Supported2 Inertia 1:1 Zero Stroke3 Inertia 1:1 Per Inch Of Stroke3 Inertia 2:1 Zero Stroke3 Inertia 2:1 Per Inch Of Stroke3 Inertia Inline Zero Stroke3 Inertia Inline Per Inch Of Stroke3 Weight "U" Mount Zero Stroke4 Weight "L" Mount Zero Stroke4 Weight Per Inch Of Stroke4
Units lbf in/s in in mm RPM in-lbf lbf lbf in lb-in² lb-in² lb-in² lb-in² lb-in² lb-in² lb lb lb
SP201 1000 8.0 12 2.00 4 3,048 28 1,529 825 2.75 0.51 0.0031 0.27 0.0008 0.04 0.0031 9 7 0.93
SP302 2,000 20.0 36 3.00 10 3,048 139 6,490 4,760 4.25 5.63 0.0203 1.63 0.0051 0.33 0.0203 38 36 1.41
SP304 4,000 20.0 36 3.00 10 3,048 278 6,490 4,760 4.25 4.85 0.0203 1.46 0.0051 0.37 0.0203 38 36 1.41
SP404 4,000 18.0 42 4.00 10 2,743 278 14,580 10,690 5.75 23.22 0.0444 4.11 0.0111 1.96 0.0444 71 65 2.39
SP406 6,000 18.0 42 4.00 10  2,743 418 14,580 10,690 5.75 23.22 0.0444 4.11 0.0111 1.96 0.0444 71 65 2.39
SP508 8,000 14.0 48 5.00 12  1,778 668 31,250 24,340 8.00 139.18 0.2646 22.64 0.0661 5.82 0.2646 154 120 3.89
SP516 16,000 14.0 48 5.00 12 1,778 1,337 31,250 24,340 8.00 139.27 0.2646 22.66 0.0661 5.91 0.2646 154 120 3.89
SP618 18,000 9.8 48 6.00 12  1,245 1,504 35,750 27,840 8.00 281.83 0.7302 43.88 0.1826 12.19 0.7302 198 182 6.16
SP625 25,000 14.4 48 6.00 20  1,097 3,481 52,150 48,160 8.00 294.38 1.8524 47.01 0.4631 24.73 1.8524 156 278 6.16

Metric

Models Rated Thrust Max. Velocity1 Max. Stroke2 Frame Size Screw Lead Max. Screw Speed1 Max. Torque At Screw Dynamic Capacity Per Million Revs Dynamic Capacity Per Million Inches Max. Motor Or Gearhead Frame Supported2 Inertia 1:1 Zero Stroke3 Inertia 1:1 Per Inch Of Stroke3 Inertia 2:1 Zero Stroke3 Inertia 2:1 Per Inch Of Stroke3 Inertia Inline Zero Stroke3 Inertia Inline Per Inch Of Stroke3 Weight "U" Mount Zero Stroke4 Weight "L" Mount Zero Stroke4 Weight Per Inch Of Stroke4
Units kN mm/s mm mm mm RPM Nm kN kN mm kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg-m² (10⁻⁶) kg kg kg
SP201 4.45 203 305 50.8 4 3,048 3.1 6.80 3.67 70 148.33 0.8952 78.75 0.2238 10.91 0.8952 4 3 0.42
SP302 8.90 508 914 76.2 10 3,048 15.7 28.87 21.17 108 1,648.16 5.9369 477.87 1.4842 95.60 5.9369 17 16 0.64
SP304 17.79 508 914 76.2 10 3,048 31.5 28.87 21.17 108 1,420.65 5.9305 427.18 1.4826 107.02 5.9305 17 16 0.64
SP404 17.79 457 1,067 101.6 10  2,743 31.5 64.86 47.55 146 6,793.93 12.9806 1,202.31 3.2452 574.03 12.9806 32 30 1.08
SP406 26.69 457 1,067 101.6 10 2,743 47.2 64.86 47.55 146 6,793.93 12.9806 1,202.31 3.2452 574.03 12.9806 32 30 1.08
SP508 35.59 356 1,219 127.0 12 1,778 75.5 139.01 108.27 203 40,729.48 77.4238 6,624.64 19.3559 1,703.82 77.4238 70 55 1.76
SP516 71.17 356 1,219 127.0 12 1,778 151.0 139.01 108.27 203 40,754.98 77.4238 6,631.01 19.3559 1,729.32 77.4238 70 55 1.76
SP618 80.07 249 1,219 152.4 12 1,245 169.9 159.02 123.84 203 82,476.19 213.6915 12,840.60 53.4229 3,566.01 213.6915 90 83 2.80
SP625 111.21 366 1,219 152.4 20 1,097 393.3 231.97 214.23 203 86,146.23 542.1018 13,758.11 135.5254 7,236.04 542.1018 71 126 2.80

1. Maximum velocity and maximum screw speed may not be achievable at maximum stroke.
2. Larger Motor or Gearhead Frames and longer stroke lengths are available upon request.
3. All inertia values are at the input shaft and are representative of typical pulleys, bushings, couplers, etc. Actual values may vary due to motor selection.
4. Weight values are for reference only and vary depending on configuration.
"U"  Parallel offset configuration
"L"  Inline configuration

*IP69K rating for static only.
