Multipurpose Actuators (12 VDC) - Lift up to 3500N

MA1527, MA3507

Joyce MA1527 and MA3507, multipurpose linear actuators are compact, versatile and designed to lift 3500N (787 pounds) dynamic load, and 4500N (1012 pounds) static load. Each 12 VDC actuator is equipped with a potentiometer and adjustable, preset limit switches, and offers an IP65 rating that qualifies them for many wash-down and outdoor duty applications.

  • Clevis-to-clevis mounting
  • Stroke lengths of 153 mm (6 in.), 305 mm (12 in.), and 457 mm (18 in.)
  • Self-locking
  • 25% duty cycle
  • Steel extension tube and outer tube
  • Optional DC controls
PART NUMBER VOLTAGE LOAD N
(lbs)
TRAVEL SPEED
mm/sec
(in/min)
STROKE
mm
(in)
RETRACTED (A)
mm
(in)
MA 152 7B 1115 12 VDC 1500
(337)
27
(64)
153
(6)
410
(16.1)
MA 1527 B 1130 12 VDC 1500
(337)
27
(64)
305
(12)
613
(24.1)
MA 1527 B 1145 12 VDC 1500
(337)
27
(64)
457
(18)
765
(30.1)
MA 3507 B 1115 12 VDC 3500
(787)

(17)
153
(6)
410
(16.1)
MA 3507 B 1130 12 VDC 3500
(787)

(17)
305
(12)
613
(24.1)
MA 3507 B 1145 12 VDC 3500
(787)

(17)
457
(18)
765
(30.1)

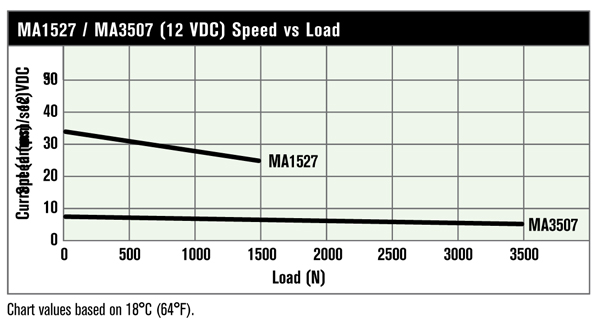

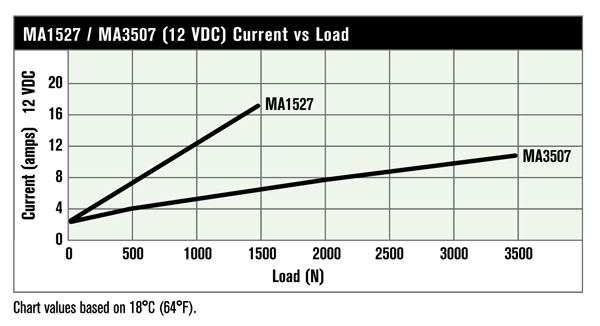

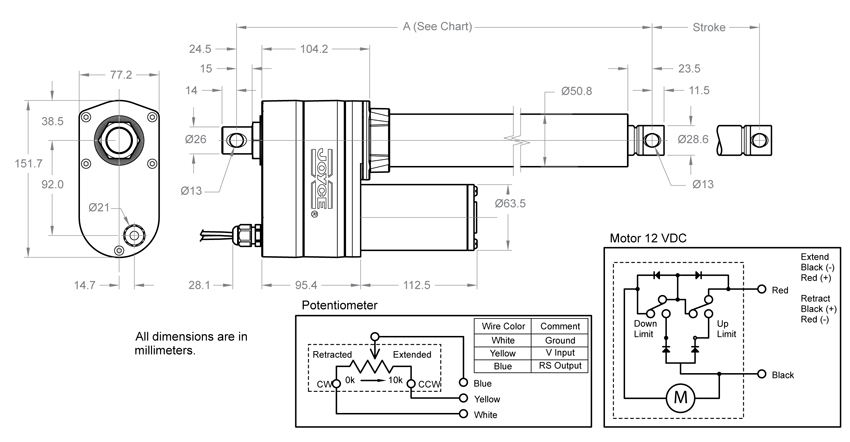

2D/3D Drawings

Login to access 2D/3D Drawings

Product Media

  • Steel extension tube and outer tube
  • Clevis-to-clevis mounting
  • IP65 protection rating
  • Preset limit switch (adjustable)
  • Potentiometer

Sample Part Number:

Click on the part number to reveal additional informaton about jack designs and shaft codes.

Model Number

500N
(122 lb) DC
1500N
(337 lb) AC & DC
2500N
(562 lb) AC & DC
3500N
(787 lb) AC & DC
4500N
(1012 lb) AC & DC
7000N
(1574 lb) AC & DC
MA0513 MA1527



MA2547 MA3507
MA3527
MA4514 MA7007

Type of switch

B = Potentiometer and preset limit switches

Voltage

1 = VDC 8 = VAC
12 VDC 12 VDC 120 VAC

MA0513

MA1527, MA2547, MA3507, MA3527, MA4514, MA7007

MA1527, MA2547, MA3507, MA3527, MA4514, MA7007

IP Rating

1 = IP65
Dust tight and protected against water jets

Stroke

Rise is travel expressed in inches and not the actual screw length.

Part Number Voltage Load N
(lbs)
Travel Speed
mm/sec
(in/min)
Stroke
mm
(in)
Retracted (A)
mm
(in)
MA1527B1115 12 VDC 1500
337
27
64
153
6
410
16.1
MA1527B1130 12 VDC 1500
337
27
64
305
12
613
24.1
MA1527B1145 12 VDC 1500
337
27
64
457
18
765
30.1
MA3507B1115 12 VDC 3500
787

17
153
6
410
16.1
MA3507B1130 12 VDC 3500
787

17
305
12
613
24.1
MA3507B1145 12 VDC 3500
787

17
457
18
765
30.1
