Solar Tracking Actuators (SA)

Joyce Solar Actuators are designed to precisely position smaller solar tracking Equipment. Their robust and efficient DC motor (24V or 36V) keeps power consumption to a minimum. Travel speeds remain nearly constant regardless of the load.

Ideal for rugged environments common to the solar industry, these cost effective SA actuators have an IP65 protection rating. Self-locking features in the mechanism ensure that the solar actuator can be held in position throughout the daily tracking cycle.

Specifications

  • Double clevis mounting for easy installation
  • Clutch for overload protection
  • Adjustable limit switches for flexible travel settings
  • Reed sensor digital feedback for accurate positioning
  • Duty cycle is 25% (4 min. running, 12 min. rest)
  • IP65 rating provides protection against outdoor conditions
  • Lubricated for life

Options

  • Available in 24V and 36V
  • Three stroke lengths
  • Trunnion or end clevis mounts available

solar tracking actuator    REQUEST A QUOTE



   Solar Actuators



   Solar Products Brochure



   Solar Worksheet



   2D/3D Drawings



   Application Details

SA - Solar Actuator
Part NumberVoltageDynamic Load CapacityStatic Load CapacityStroke"A" Retracted
SA5524C450 24V 5,500 N (1,200 lb.) 13,600 N (3,000 lb.) 450 mm (18 in.) 764 mm (30.1 in.)
SA5536C450 36V
SA5524C600 24V 5,500 N (1,200 lb.) 13,600 N (3,000 lb.) 600 mm (24 in.) 917 mm (36.1 in.)
SA5536C600 36V
SA5524C900 24V 5,500 N (1,200 lb.) 13,600 N (3,000 lb.) 900 mm (36 in.) 1,269 mm (50.0 in.)
SA5536C900 36V
SA9024C450 24V 9,000 N (2,000 lb.) 17,100 N (3,800 lb.) 450 mm (18 in.) 810 mm (31.9 in.)
SA9036C450 36V
SA9024C600 24V 9,000 N (2,000 lb.) 17,100 N (3,800 lb.) 600 mm (24 in.) 963 mm (37.9 in.)
SA9036C600 36V
SA9024C900 24V 9,000 N (2,000 lb.) 17,100 N (3,800 lb.) 900 mm (36 in.) 1,315 mm (51.7 in.)
SA9036C900 36V



Fill out the Solar Application Selection Guide or contact us at solar@joycedayton.com.

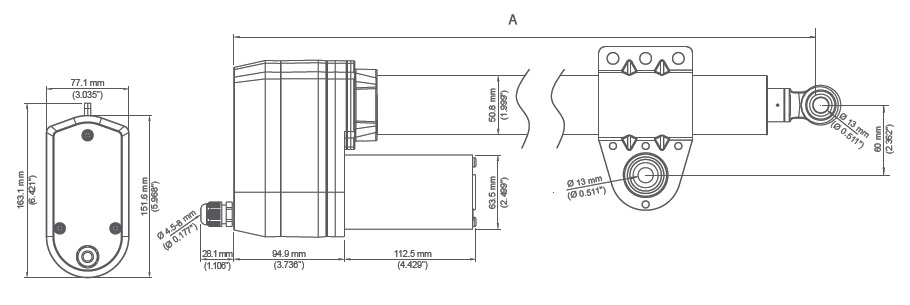

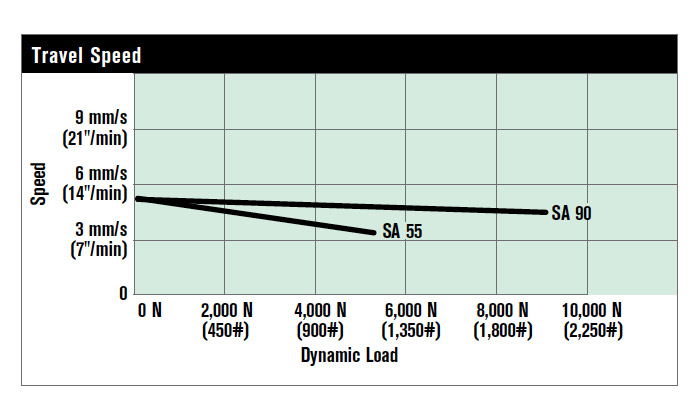

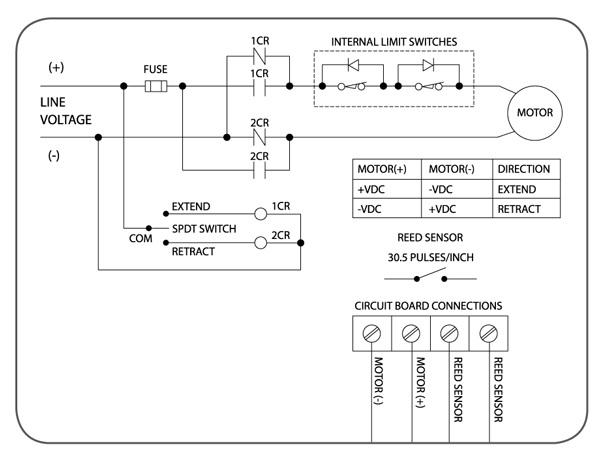

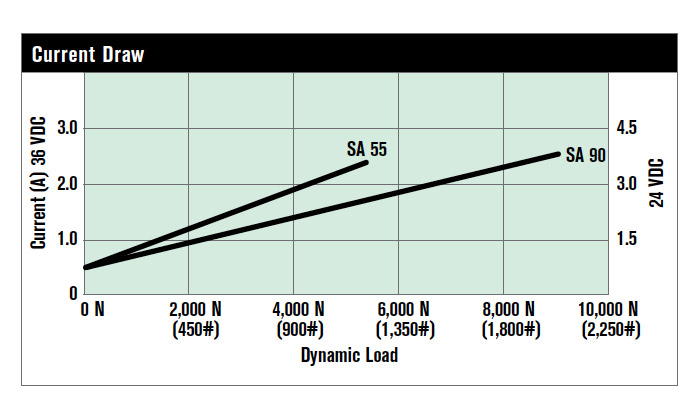

Typical Plan ViewTravel SpeedCurrent DrawElectrical Schematic
