EDrive Linear Actuators
EDrive linear actuators are designed to handle the most demanding applications. Equipped with precision ball screw systems, these actuators are manufactured for maximum life, load handling, and speed, delivering dependable motion control. Their fully enclosed design prevents contamination, significantly reducing failure risks related to debris or harsh environments.

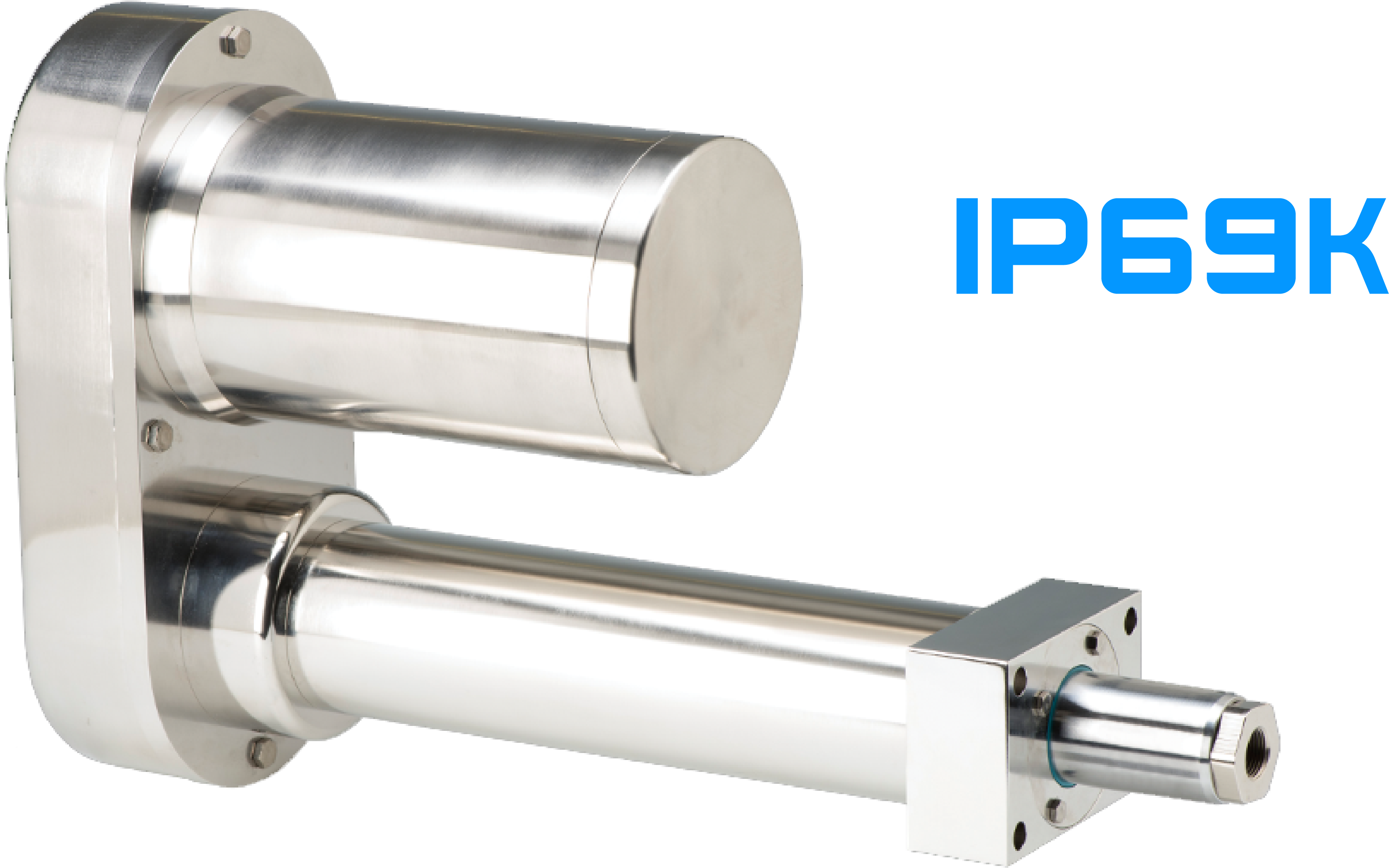

Our 316 stainless steel actuators are IP69K-rated, making them ideal for industries like food processing and medical applications where high-pressure and high-temperature washdowns are common. Additionally, EDrive linear actuators can be tailored to your unique needs, including options like an epoxy finish for added protection. Learn more about EDrive linear actuators from Joyce/Dayton Corp. below.
Products
EDrive offers an extensive range of linear motion control solutions, with options designed for diverse industry use. Available exclusively from Joyce/Dayton Corp., these products are ideal for applications that demand rugged construction and reliable longevity.

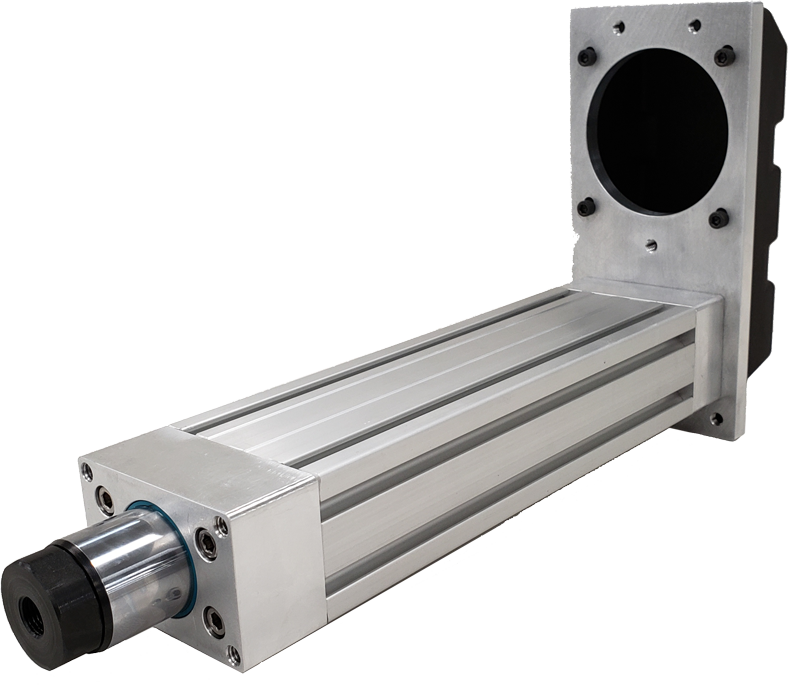

Universal Actuator UA
Our Universal Actuator UA is a convenient solution for automation needs. These compact actuators are designed to ensure an easy fit, with a convenient T-slot bracketing design for fast mounting. Key features include:
- Rated thrust up to 500 lbf
- IP54-rated to prevent contamination
- Piston with internal anti-rotation
- Velocity up to 50 in/sec
- Adjustable limit switches are available
Eliminator SD
The Eliminator SD is a super-duty actuator featuring durable steel construction and an anti-rotation feature. When combined with your servomotor, it achieves the perfect high precision and high load capacity. It has a thrust capacity of up to 100,000 lbf and a velocity of up to 12 in/sec, with strokes up to 48 in.

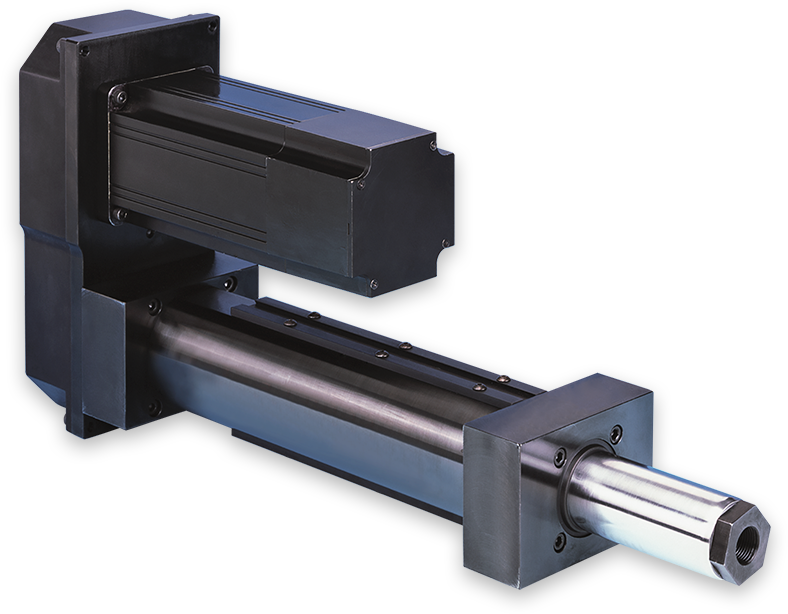

Eliminator HD
The Eliminator HD is a ball screw linear actuator designed to replace hydraulic presses. It has a rated thrust up to 25,000 lbf and a high velocity up to 20 in/sec, with a stroke of up to 48 in. The Eliminator HD has a 0.002 in/ft standard lead accuracy and a 0.0005 in/ft optional lead accuracy.

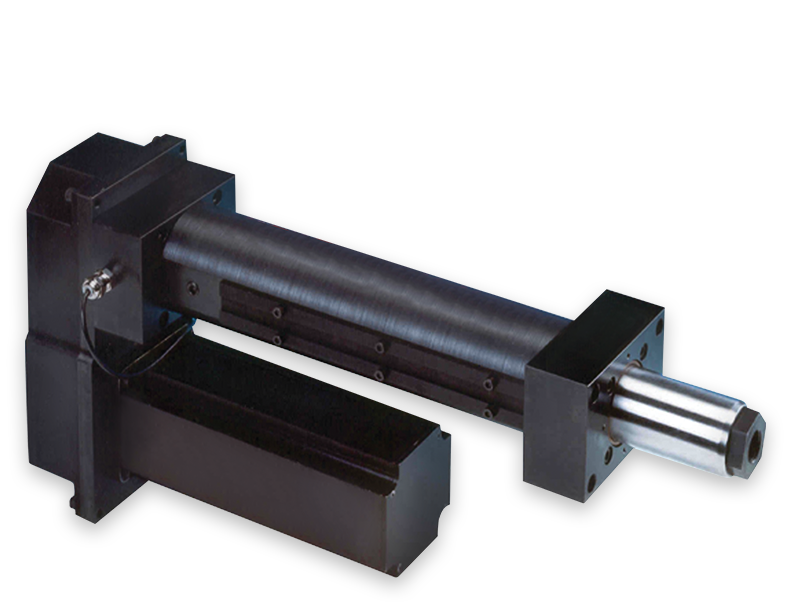

Eliminator HDL With Integrated Load Cell
Featuring all of the precision features of the HD series as well as an integrated load cell design, the Eliminator HDL with Integrated Load Cell offers continuous measurement of applied thrust. This product conforms to ASTM E4 standards for testing machines and features a rated thrust of 25,000 lbf. The Eliminator HDL is designed as an economical solution for high-speed precision thrust needs.
Eliminator SP
The Eliminator SP is an IP69K-rated product that's ideal for medical- or food-grade needs. It features a contoured 316 stainless steel construction and a hard chrome-plated piston rod. This product is designed to withstand high-temperature, high-pressure washdown conditions and offers a velocity of 20 in/sec, and stroke up to 48 in.

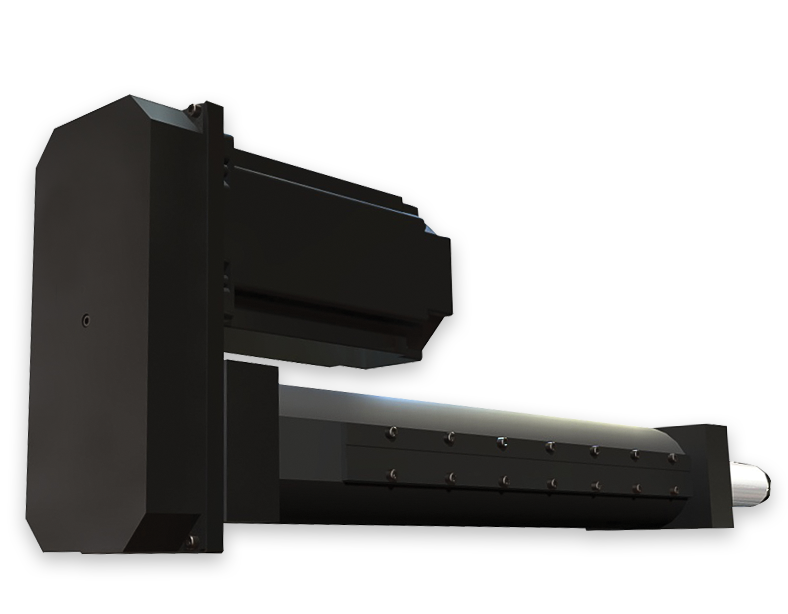

Eliminator SS
Designed for extreme speed applications, the Eliminator SS has speed capabilities up to 63 in/sec and stroke up to 48 in. The Eliminator SS has a rated thrust up to 2,000 lbf and a sealed chamber design that meets IP54 requirements.
Eliminator SPL With Integrated Load Cell
The Eliminator SPL with Integrated Load Cell is an IP69K-rated solution ideal for high-pressure, high-temperature washdown applications. This product is designed to deliver reliable performance within harsh environments. In addition to a durable anti-rotation feature, it also features 0.002 in/ft standard lead accuracy and 0.0005 in/ft optional lead accuracy.

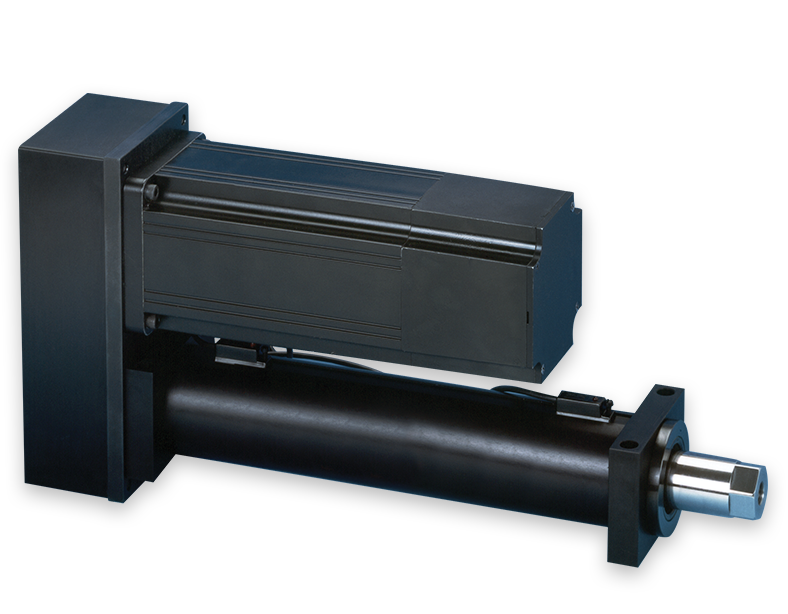

Tac VT
EDrive's Tac VT ball screw linear actuators are designed to meet higher thrust load requirements at faster velocities than ET series products. These actuators feature a compact design with thrust up to 2,000 lbf and velocity up to 40 in/sec. They are IP54-rated and feature a sealed chamber design and purge provisions.
Tac VP
The Tac VP is a new, IP69K-rated product designed for food-grade and caustic washdown applications. Featuring a 316 stainless steel contoured exterior, this compact actuator has a thrust up to 2,000 lbf and a velocity of up to 40 in/sec, with a stroke up to 24 in.

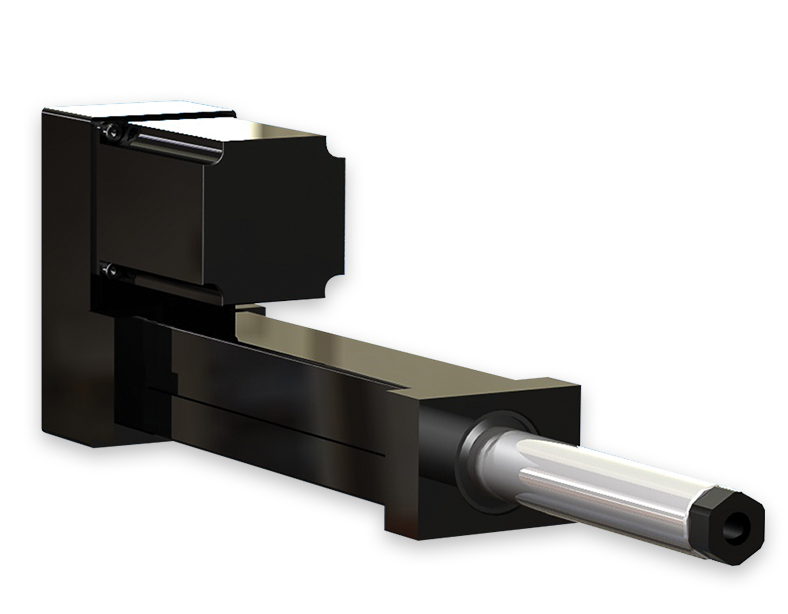

Tac LS
The Tac LS is a high-speed, high-force actuator developed for long stroke applications. Its small size is compatible with any standard unit mounting style, while rugged aluminum alloy cylinders and chrome-plated heavy wall steel pistons provide lasting durability. The Tac LS offers velocity up to 40 in/sec and stroke from 24 to 60 in.
Industries
EDrive products meet the demands of diverse industries, including automotive, military and defense, material handling, and much more. Read about the most common industry uses for our products below.
Agriculture
EDrive actuators are ideal for agricultural applications that require quick response, high levels of precision, and reduced operating costs. Designed to deliver reliable performance under rigorous conditions, these products are an effective replacement for hydraulic cylinders. EDrive actuators feature a patented ball screw design that’s the most reliable in the industry.
Some of the most common agriculture applications for EDrive actuators include:
- Climate control systems
- Grain handling
- Seeding and spraying
- Feeding automation
- Harvesting and picking
Automotive and Transportation
EDrive actuators are a high-performance alternative to hydraulic and pneumatic linear actuators within factory automation applications. They are precise, reliable, and more energy-efficient than other solutions. For these reasons, EDrive products are commonly used for the following automotive and transportation applications:
- Commercial airport jetways
- Opening and closing vehicle doors
- Railway maintenance work
- Automotive manufacturing and assembly processes (cutting, bending, stamping, pressing, conveying, etc.)
Defense
The military and defense industry requires rugged, energy-efficient products. EDrive actuators are more precise than hydraulics and deliver a longer operating life, even within extreme environmental conditions. Some of the most common applications of EDrive actuators within the defense industry include:
- Aircraft landing gear
- Full-scale training simulators
- Weapon positioning
- Armored plate positioning
- Tank elevation adjustment
Food & Beverage
Food and beverage manufacturing involves numerous automation applications, all requiring a safe and sanitary environment. EDrive actuators are food-grade and IP69K-rated, making them an ideal choice for projects involving:
- Automated assembly lines
- Conveyors
- Bottle filling
- Processing equipment
Forestry and Lumber
The forestry and lumber industries require robust tools that can endure demanding use. EDrive products are built for the harshest operating conditions and offer accurate positioning, even at high speeds. EDrive linear actuators are used in many types of forestry equipment, including:
- Arbor gang systems
- Edge guides and saws
- Log clamping and debarking tools
- Veneer pulling machines
- Chippers and band mills
- Flying saws
- Presses and pre-presses
Material handling and Packaging
EDrive products offer precision and reliability within many material handling and packaging applications, including:
- Clamping and positioning
- Sorting
- Conveying
Motion Simulators and Entertainment
EDrive actuators are quiet, accurate, and low-maintenance enough for arts and entertainment-related applications as well as motion simulators. These products deliver the smooth, continuous motion needed for animatronics, theater staging moves, and motion applications such as:
- Interactive ride simulators
- Flight simulators
- Film production camera sliders
- Heavy equipment simulators
- Space shuttle simulators
Work With the Actuator Experts
Since 1980, EDrive, a brand of Joyce/Dayton, has delivered innovative, patented products that improve the performance and reliability of industry-diverse equipment. EDrive's extensive standard product line has been developed to meet the needs of virtually any motor or gearbox. If you can't find the ideal solution in our product catalog, our team will help you develop a custom product tailored to your requirements.
Electric linear actuators offer many performance benefits over hydraulic and pneumatic options. In addition to greater speed and accuracy, electric actuation is more energy efficient and involves minimal operating costs. EDrive is committed to helping customers improve their motion control technology and find the ideal solution to their performance needs. To talk with one of our experts, request a quote today or contact us with any questions.
