Multipurpose Actuators (12 VdC) - Lift up to 7000N

MA2547, MA3527, MA4514, MA7007

Joyce MA2547, MA3527, MA4514, and MA7007, multipurpose linear actuators are compact, versatile and designed to lift 7000N (1574 pounds) dynamic load, and 13,600N (3057 pounds) static load. Each 120 VDC actuator is equipped with a potentiometer and adjustable, preset limit switches, and offers an IP65 rating that qualifies them for many wash-down and outdoor duty applications.

  • Clevis-to-clevis mounting
  • Stroke lengths of 153 mm (6 in.), 305 mm (12 in.), and 457 mm (18 in.)
  • Self-locking
  • 25% duty cycle
  • Stainless steel extension tube, steel outer tube
  • Optional DC controls
PART NUMBERVOLTAGELOAD N
(lbs)		TRAVEL SPEED
mm/sec
(in/min)		STROKE
mm
(in)		RETRACTED(A)
mm
(in)
MA 2547 B 1115 12 VDC 2500
(562)		 47
(111)		 153
(6)		 450
(17.7)
MA 2547 B 1130 12 VDC 2500
(562)		 47
(111)		 305
(12)		 680
(28.8)
MA 2547 B 1145 12 VDC 2500
(562)		 47
(111)		 457
(18)		 832
(32.8)
MA 3527 B 1115 12 VDC 3500
(787)		 27
(64)		 153
(6)		 450
(17.7)
MA 3527 B 1130 12 VDC 3500
(787)		 27
(64)		 305
(12)		 680
(26.8)
MA 3527 B 1145 12 VDC 3500
(787)		 27
(64)		 457
(18)		 832
(32.8)
MA 4514 B 1115 12 VDC 4500
(1012)		 14
(33)		 153
(6)		 450
(17.7)
MA 4514 B 1130 12 VDC 4500
(1012)		 14
(33)		 305
(12)		 680
(26.8)
MA 4514 B 1145 12 VDC 4500
(1012)		 14
(33)		 457
(18)		 832
(32.8)
MA 7007 B 1115 12 VDC 7000
(1574)		 7
(16.5)		 153
(6)		 450
(17.7)
MA 7007 B 1130 12 VDC 7000
(1574)		 7
(16.5)		 305
(12)		 680
(26.8)
MA 7007 B 1145 12 VDC 7000
(1574)		 7
(16.5)		 457
(18)		 832
(32.8)

multipurpose actuator, dc    REQUEST A QUOTE



   O&M Manual



   Product Datasheet



   Controls



   2D/3D Drawings

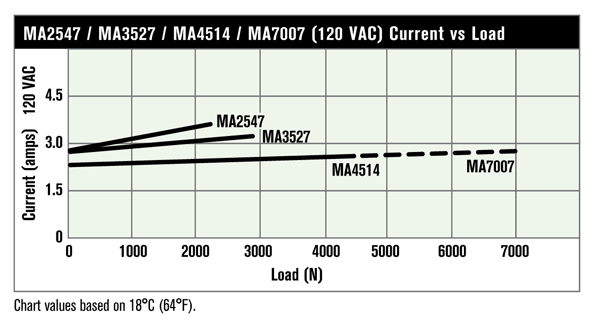

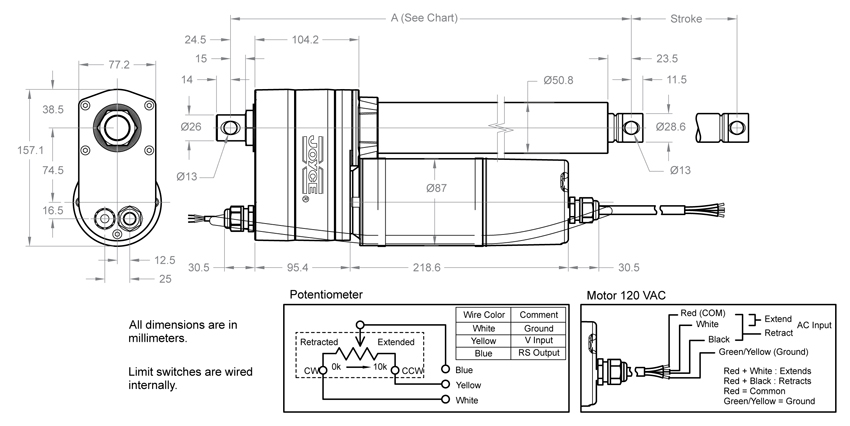

Actuator DiagramSpeed Vs. LoadCurrent Vs. Load

Construction

  • Stainless steel extension tube and outer tube
  • Aluminum alloy housing
  • Clevis-to-clevis mounting
  • IP65 protection rating
  • Preset limit switch (adjustable)
  • Potentiometer

Ordering Information

Sample Part Number:

Click on the part number to reveal additional informaton about jack designs and shaft codes.


Model Number

500N
(122 lb) DC		 1500N
(337 lb) AC & DC		 2500N
(562 lb) AC & DC		 3500N
(787 lb) AC & DC		 4500N
(1012 lb) AC & DC		 7000N
(1574 lb) AC & DC
MA0513 MA1527



 MA2547 MA3507
MA3527		 MA4514 MA7007

Type of switch

B = Potentiometer and preset limit switches

Voltage

1 = VDC 8 = VAC
12 VDC 12 VDC 120 VAC

MA0513
MA1527, MA2547, MA3507, MA3527, MA4514, MA7007
MA1527, MA2547, MA3507, MA3527, MA4514, MA7007

IP Rating

1 = IP65
Dust tight and protected against water jets

Stroke

Code MA0513 All Others
10 100 mm (3.9 in)
15 150 mm (5.9 in) 153 mm (6 in)
25 250 mm (9.8 in)
30 300 mm (11.8 in) 305 mm (12 in)
45   457 mm (18 in)

Product Specifications

Part NumberVoltageLoad N
(lbs)		Travel Speed
mm/sec
(in/min)		Stroke
mm
(in)		Retracted (A)
mm
(in)
MA2547B1115 12 VDC 2500
562		 47
111		 153
6		 450
17.7
MA2547B1130 12 VDC 2500
562		 47
111		 305
12		 680
28.8
MA2547B1145 12 VDC 2500
562		 47
111		 457
18		 832
32.8
MA3527B1115 12 VDC 3500
787		 27
64		 153
6		 450
17.7
MA3527B1130 12 VDC 3500
787		 27
64		 305
12		 680
26.8
MA3527B1145 12 VDC 3500
787		 27
64		 457
18		 832
32.8
MA4514B1115 12 VDC 4500
1012		 14
33		 153
6		 450
17.7
MA4514B1130 12 VDC 4500
1012		 14
33		 305
12		 680
26.8
MA4514B1145 12 VDC 4500
1012		 14
33		 457
18		 832
32.8
MA7007B1115 12 VDC 7000
1574		 7
16.5		 153
6		 450
17.7
MA7007B1130 12 VDC 7000
1574		 7
16.5		 305
12		 680
26.8
MA7007B1145 12 VDC 7000
1574		 7
16.5		 457
18		 832
32.8
