Integrated Actuators

HBIA51 - Ball Screw 1" diameter, 1.0" lead

Joyce integrated actuators with high lead ball screws (HBIA) lift upt o 700-pounds. Requiring only electric power, Joyce integrated lineator actuators may be used in place of hydraulic cylinders, eliminating the cost and potential for leaks associated with hydraulic systems. Translating tube (TT) integrated linear actuators are well suited for use in industrial environments where protection of the lifting screw mechanism and low maintenance is desired. Traveling nut (TN) integrated linear actuators are best suited for use in environments that are relatively clean and free of dust

  • Ball screw, 1” diameter, 1.0” lead
  • Durable aluminum housing with integral NEMA 56C-face motor flange
  • Optional motor size based on load capacity
  • Optional limit switch and accessories
  • Brake motor required to hold position
  • Capable of speeds from 228 to 345 inches per minute
  • For travel lengths greater than 24" contact sales@joycedayton.com



Parts list and exploded views are included in the O&M Manual.

  • Aluminum housing and motor mount
  • Input shaft (worm), 4140 cold rolled steel (CDS)
  • Alloy steel ball screw
  • Chrome plated inner tube
  • Aluminum bronze traveling nut

Sample Part Number:

Click on the part number to reveal additional informaton about jack designs and shaft codes.

Model Number

Acme
1" diameter, .25" pitch
Acme
1" diameter, .25" pitch/.50" lead
Ball
1" diameter, .25" pitch
Ball
1" diameter, 1.00" pitch
IA51
IA201
DIA51*
DIA201*
BIA51*
BIA201*
BHIA51*

Important Note: *Integrated actuators may lower under load. Brake motors or external locking systems are recommended.

Integrated Actuator Configuration

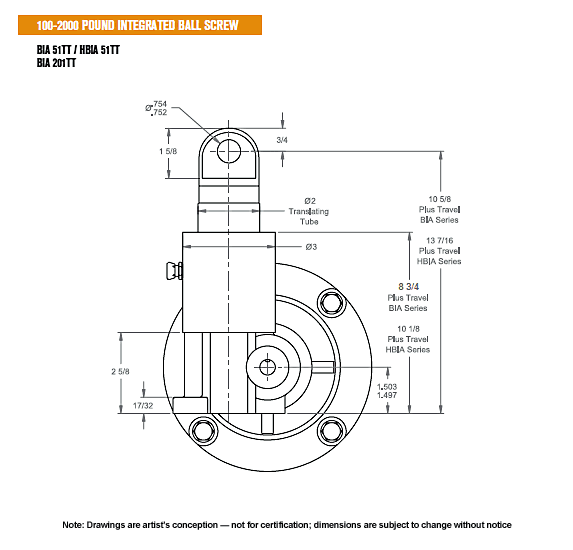

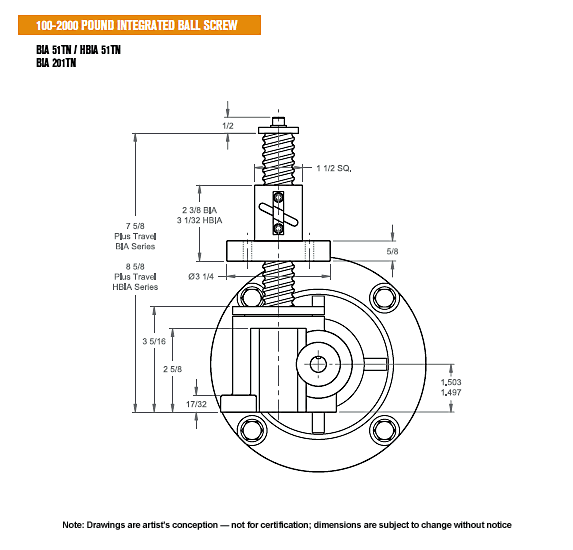

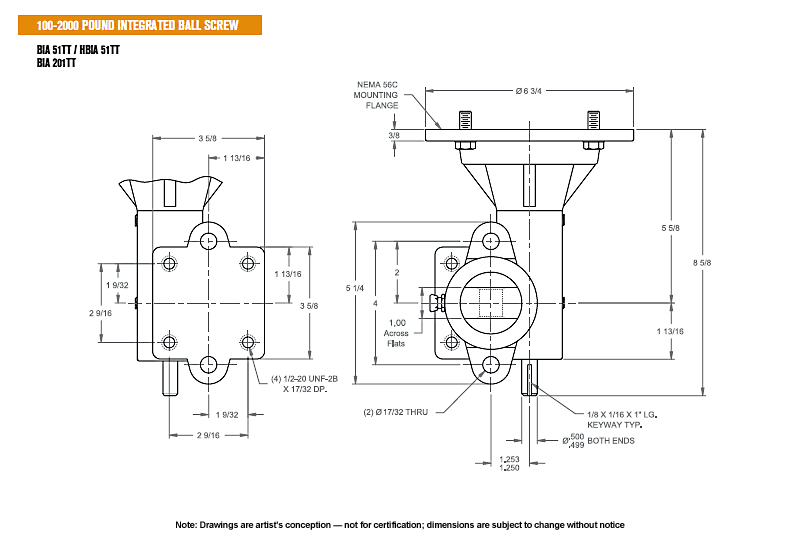

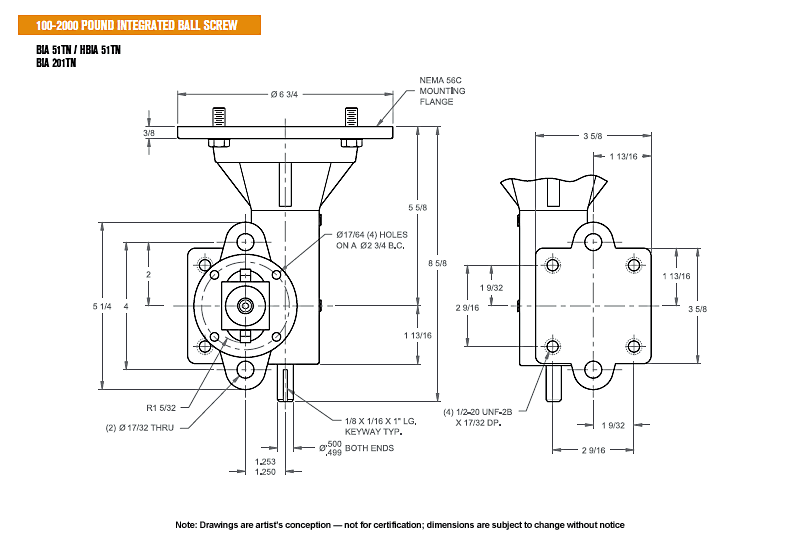

TT Translating Tube TN Keyed for Traveling Nut

Integrated Actuator Rise

Rise is travel expressed in inches and not the actual tube length.

Left Side Shaft Code Right Side Shaft Code
Left Side Shaft Code Right Side Shaft Code

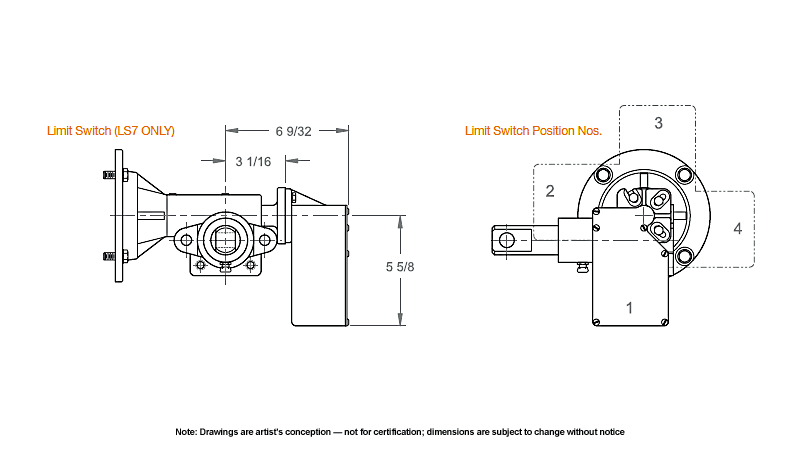

Limit Switches
Position 1 2 3 4
Left side Shaft LJ10 LJ20 LJ30 LJ40
Code LJ10 LJ20 LJ30 LJ40
Motors
Size Code
1/4 HP K
1/3 HP A
1/2 HP B
3/4 HP C
No Motor X



Standard Motors
Voltage Speed (rpm) 1/4 HP 1/3 HP 1/2 HP 3/4 HP
115/230 VAC Single Phase 1140     X X
115/230 VAC Single Phase 1725 X X X X
115/230 VAC Single Phase w/brake 1725   X X X
230/460 VAC Three Phase 1140 X X X X
230/460 VAC Three Phase 1725 X X X X
230/460 VAC Three Phase w/brake 1725 X X X X
12 VDC Permanent Magnet 1800 X X X X
24 VDC Permanent Magnet 1800   X X X
90 VDC Permanent Magnet 1750 X X X X
180 VDC Permanent Magnet 1750 X X X X



Options**
X No additional options
M Modify standard actuator
C12 12 VDC motor
C24 24 VDC motor
C90 90 VDC motor
C180 180 VDC motor
K Brake motor
R 1140 RPM motor
S Single phase 115/230 3-ph. 60 Hz

**Specify as many options as needed.

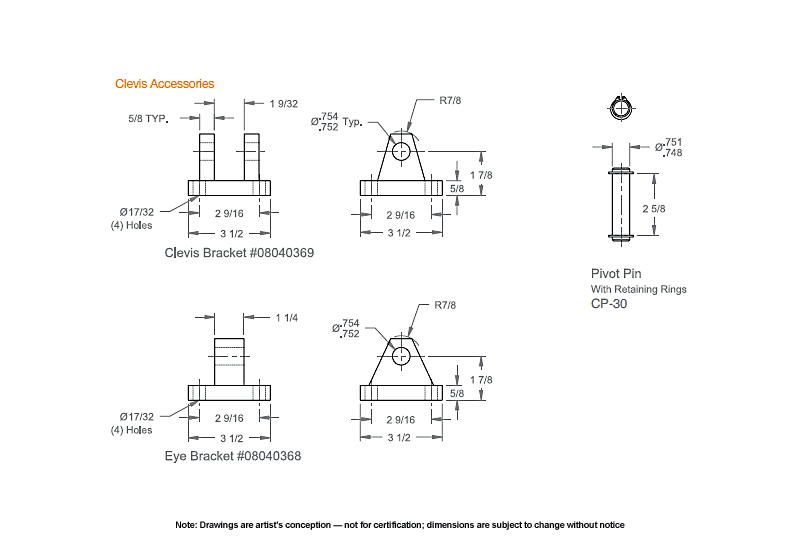

Optional Accessories
08040369 CP-30 08040368
Model Number BIA511 HBIA51
BIA201 -
Ball Screw 1" diameter, .25" lead, ball screw 1" diameter, 1.0" lead, ball screw
Wormgear Ratio 5:1 5:1
20:1 -
Worm Shaft Turns/1" Travel 20 5
80 -
Motor RPM 1140 1725 1140 1725
Lifting Speed (Inches/Minute) 57 86 228 345
14 21 - -
Rated Load (Lbs.) 1/4 HP Motor 925 625 225 100
2000 2000 - -
1/3 HP Motor 1225 825 300 200
2000 2000 - -
1/2 HP Motor 1850 1250 450 300
2000 2000 - -
3/4 HP Motor 2000 1875 700 450
2000 2000 - -



Lead: The distance traveled axially in one rotation of the lifting screw.
Pitch: The distance from a point on a screw thread to a corresponding point on the next thread, measured axially.
Important Note: BIA & HBIA models may lower under load. Brake motors or external locking systems are recommended.
