Boots For Traveling Nut Screw Jacks

Joyce boots protect the lifting screw from dust, dirt, and help maintain lubrication. Standard boots, fabricated from neoprene-coated nylon also guard against moisture and corrosive contaminants. Adding protective boots may increase the closed height of jacks. For specific dimensional information based on jack design, refer to the information below.

  • Zippered boots
  • Horizontally mounted boots
  • Boots for extreme temperatures (-100°F to 500°F)
  • Boots for corrosive atmospheres
  • Boots for Bevel Gear Jacks and Bevel Ball Actuators

Keyed for travel nut design guide:

Refer to the KFTN Boot Design Guide . You may download the pdf and send the information via email or fax to Joyce/Dayton.

Ordering Information:

Since boots are designed for specific jacks and actuators, they are specified as part of the complete part number. Refer to the ordering section for the products on which they will be used: Machine Screw JacksMachine Screw ComDRIVEsBall Screw JacksBall Screw ComDRIVEsStainless Steel Screw JacksMetric Screw JacksBevel Gear JacksBevel Ball Actuators

Replacement Boots: To order replacement boots, contact sales@joycedayton.com and provide the serial number of the jack on which the boots will be mounted.

  Thickness
MaterialTemperature RangeIn.mm.Offers Resistance to:
Neoprene-coated nylon Black (standard material) –60°F to 250°F. 0.020 0.51 Vegetable and animal oils, weather, abrasion
Neoprene-coated nylon Black –60°F to 250°F. 0.036 0.91 Vegetable and animal oils,  weather, abrasion
Hypalon-coated nylon Green –60°F to 250°F. 0.024 0.61 Vegetable and animal oils,  weather, abrasion
Hypalon-coated nylon Black –60°F to 250°F. 0.023 0.58 Vegetable and animal oils,  weather, abrasion, ozone, acids
Silicon-coated fiberglass Red-orange –100°F to 450°F. 0.022 0.56 Vegetable and animal oils,  weather, abrasion, ozone, acids
Aluminum-coated fiberglass Silver –100°F to 500°F 0.020 0.51 Weld spatter, flame

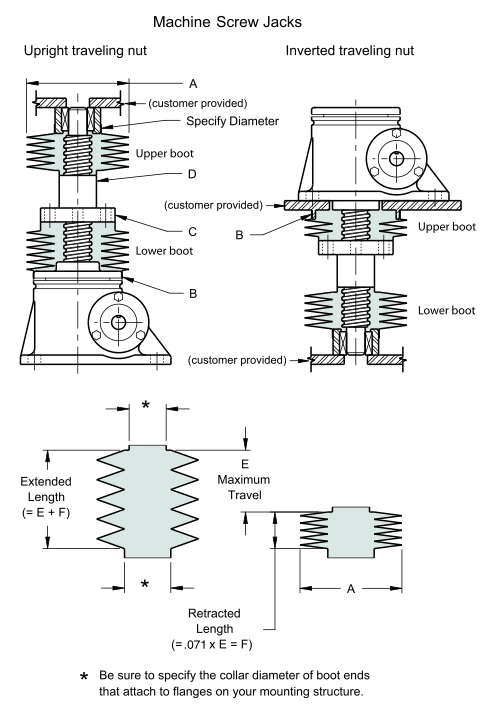

Jack CapacityA O.D. of BootB Collar DiameterC - Collar DiameterD - Collar Diameter Machine Screw Jacks Only**
ACME NutBall Nut
250/500 Lb. 3 1/2 2 5/16 2 1/4   1
1,000 Lb. 3 1/2 2 5/16 2 1/4   1
1Ton 5 2 3/4 3 1/4 2 5/8 1 1/2
2Ton 5 3 3/4 3 1/4 3 1/4 1 1/2
3Ton 5 1/2 3 3/4 3 1/4   2
5Ton 5 1/2 4 3/4 4 4 15/16 2
10 Ton 6 1/2 5 3/4 6 5 3/8 3
15 Ton 6 1/2 5 3/4 6 1/2   3 1/2
20 Ton 6 1/2 6 7 1/2 5 3/8 3 3/4
25 Ton 8 7 1/2 8 1/2   4 1/2
30 Ton 8 8 1/4 7 3/8 7 3/8 4 1/2
35 Ton 10 8 1/2 9   5
50 Ton 10 11 5/8 10 9 3/4 6
75 Ton 13 13 1/2 12   7
100 Ton 14 1/2 15 12 3/4   8
