Motor Starters

Joyce motor starters are the heart of a basic control system for a motorized jack, actuator, electric cylinder, or ComDrive® system. Motor starters include extend and retract push buttons for momentary operation; an illuminated power-on light lets operators easily determine if there is power to the system.

Other standard features:

  • Limit switch terminals for two LS8-402 end-of-travel limits
  • 208, 230, 460, 575 volts standard, three-phase power requirements
  • NEMA 4 enclosure
  • All three-phase motor starters include IEC motor overload protection
  • Manual jog

Common Options:

Many options are available including:

  • NEMA 4X enclosure or explosion-proof enclosure
  • 50 HZ motors
  • Pendant controls
  • International voltages
  • Single-phase operation
  • Multiple starters in a single enclosure
  • Starters for larger horsepower motors
  • Maintained contact operation
  • Stack lights and audible alarms
  • Wiring for LS7 and LS8-404 and other limits

Choose from the part numbers provided under the Product Specifications tab, or fill out the Motor Controls Worksheet and email or fax to Joyce Dayton. If you have questions, contact sales@joycedayton.com.

Ordering Information:

Each model's part number begins with the prefix 07990377. To this prefix, add the appropriate suffix from the Product Specifications chart below. For example: 07990377-17 refers to a motor starter for a 1 1/2 horsepower, 200 volt motor.

Motor HP Starter Part Number Suffix
Motor HPVoltage
  208 230 460 575
1/3 -1 -2 -3 -4
1/2 -5 -6 -7 -8
3/4 -9 -10 -11 -12
1 -13 -14 -15 -16
1 1/2 -17 -18 -19 -20
2 -21 -22 -23 -24
3 -25 -26 -27 -28
5 -29 -30 -31 -32
7 1/2 -33 -34 -35 -36
10 -37 -38 -39 -40
15 -41 -42 -43 -44

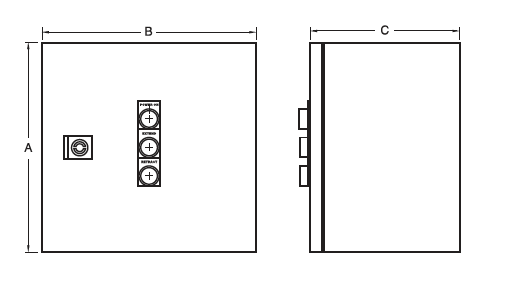

Standard Dimensions
Amp RatingABC
< 25 amp 12 12 6.64
> 25 amp 14 12 6.64
